TS.X0 All Aluminum Thermally Broken Slim
Explore TS.X0 All Aluminum Thermally Broken Slim for kitchen and service counters. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for kitchen and service counters
The TS.X0 Premium multi-slide system offers unparalleled luxury with smooth operation, sleek design, and superior performance for any architectural style.
TS.X0 All Aluminum Thermally Broken Slim: maximum panel height 240"; maximum panel width 200"; stile ¹⁵⁄₁₆"; style Modern.
Measure the counter height and depth as well as the window opening. Show faucets, shelves, work surfaces and the area where panels will park so the open window remains useful during service.
This system appears in the impact-rated range. Confirm the exact approval, size, glazing, substrate and anchoring for your project. General size limits do not establish an approved impact configuration.

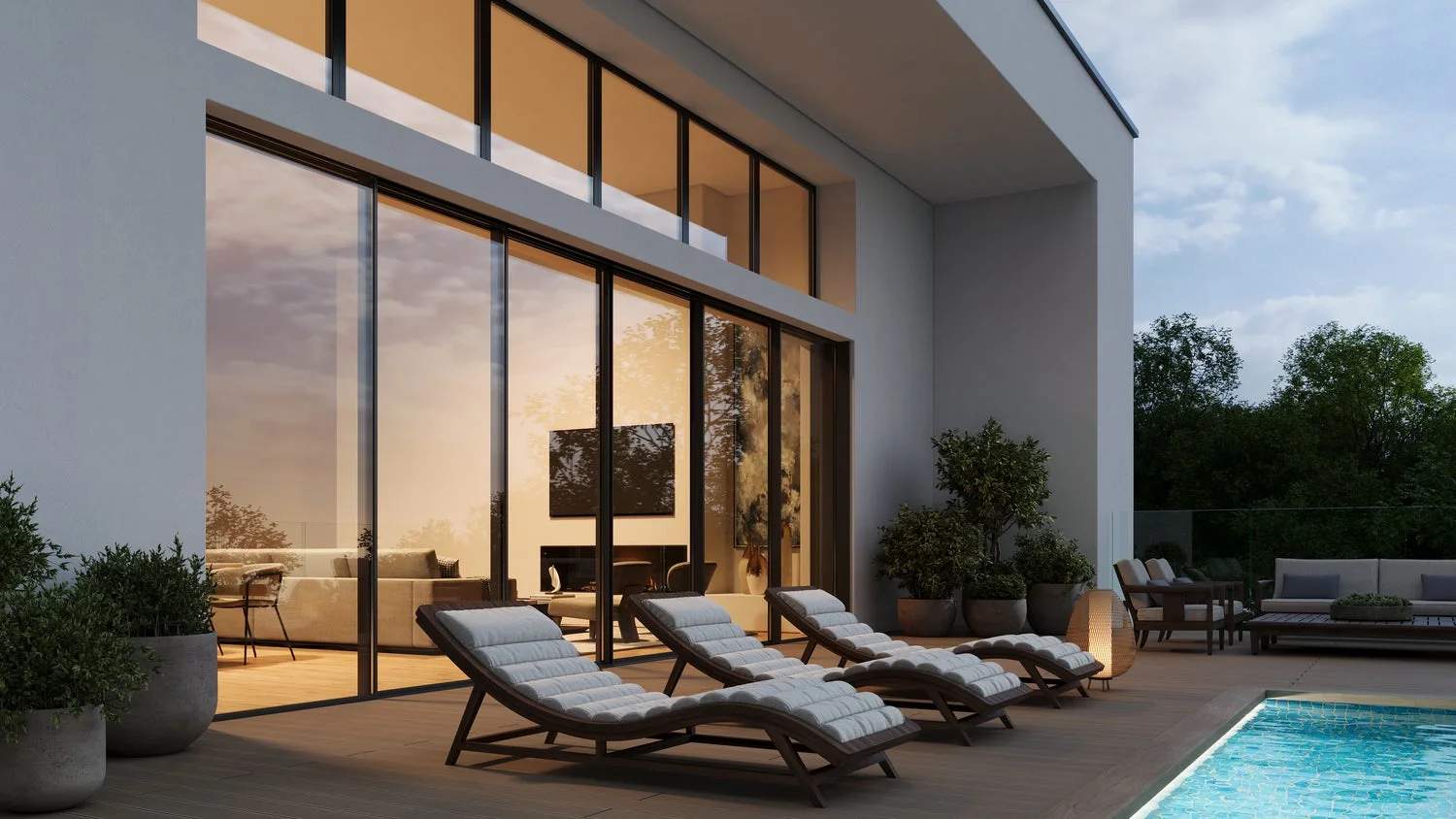

Photography & design details

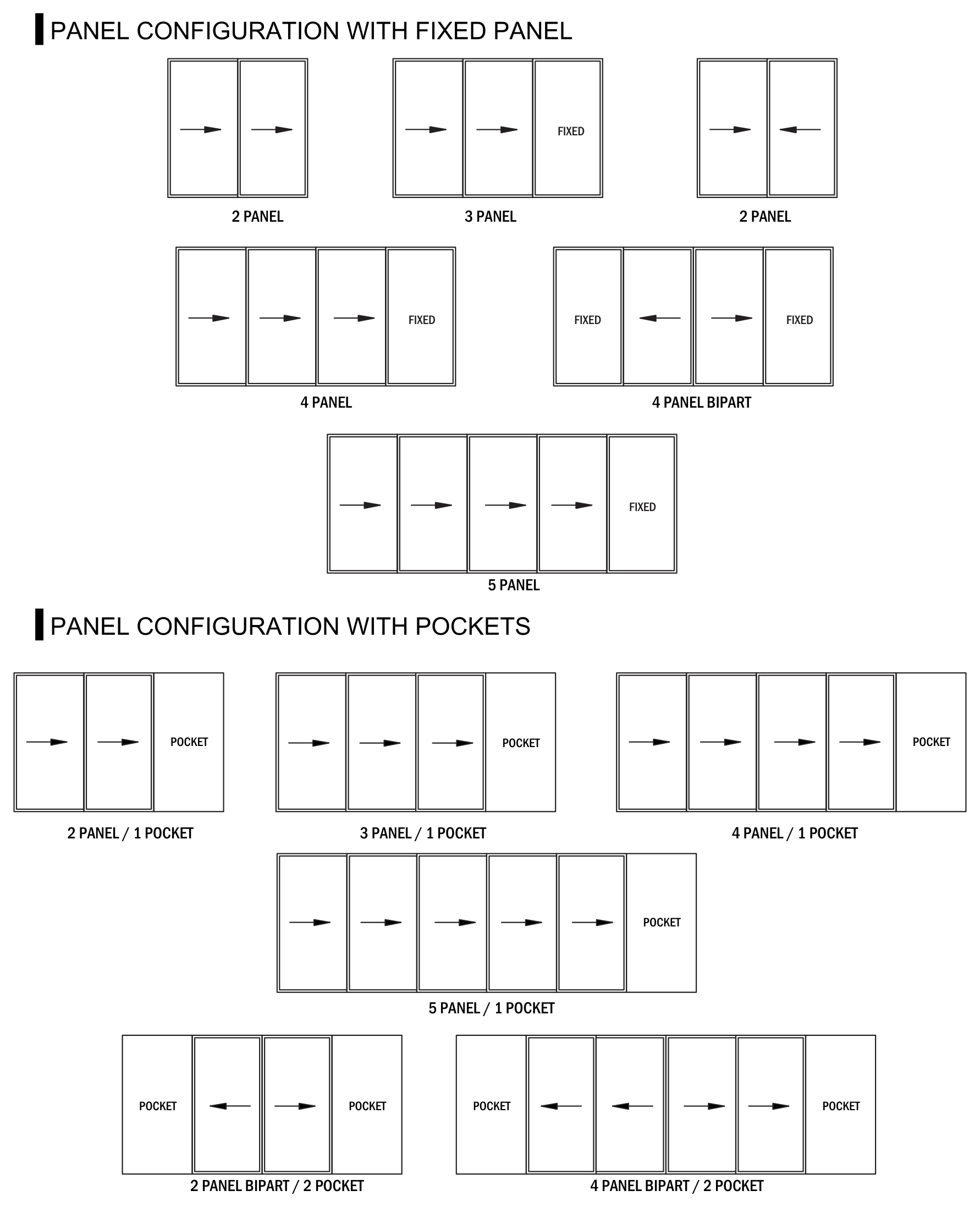

Configuration drawings and planning details
Compare the panel arrangements with the space available beside the opening. Fixed-panel layouts and pocket layouts leave different clear openings and require different parking space. Select the travel direction, panel grouping and track count before finalizing the frame size, pocket or floor recess.
Use the drawings to discuss TS.X0 All Aluminum Thermally Broken Slim with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes

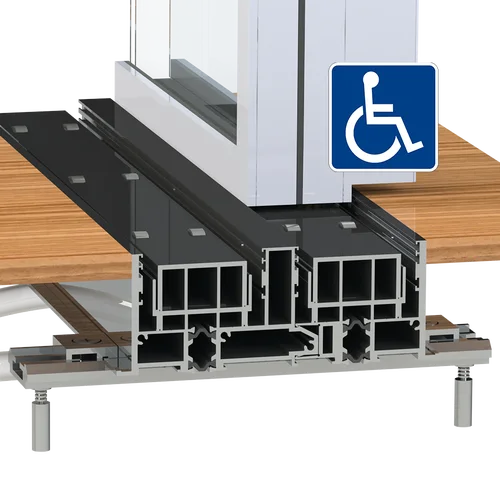

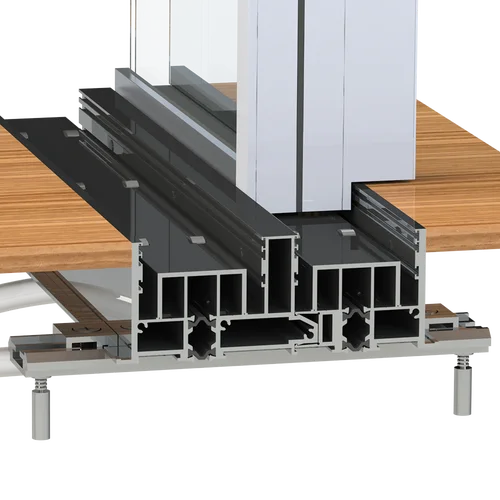

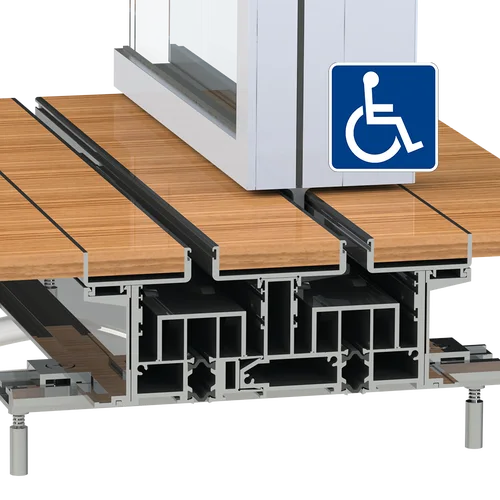

Recessed Tracks

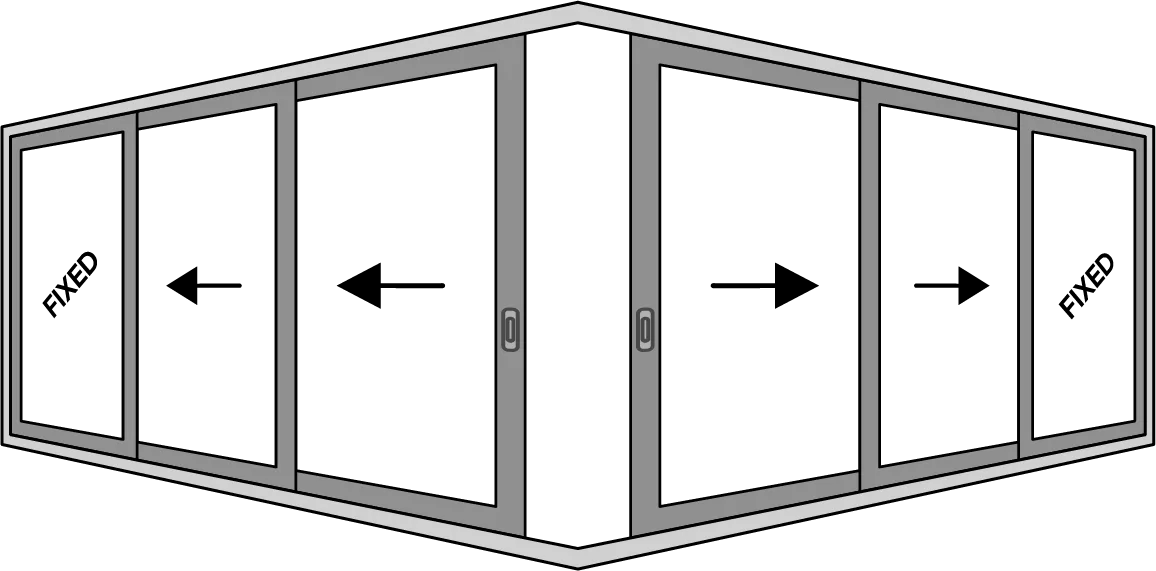

Configurations
Handle
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- 0.42
- SHGC
- 0.24
- Impact Rated
- Yes
- AAMA Tested
- Yes
- Design Pressure (psf)
- +70.18 / -128.80
- Air Infiltration (cfm/ft2)
- 0.01
- Water Penetration Resistance (psf)
- 12.11
- Structural Test Pressure (psf)
- +105.27 / -191.70
- Florida Approval #
- 41732.1
Specifications
- Maximum Panel Height
- 240"
- Minimum Panel Height
- 20"
- Maximum Panel Width
- 200"
- Minimum Panel Width
- 12"
- Maximum Panel Weight
- 2,000 lbs
- Panel Depth
- 2 ⁵⁄₁₆"
- Maximum Number of Panels
- Unlimited
- Stile
- ¹⁵⁄₁₆"
- Rail
- ¹⁵⁄₁₆"
Design and installation planning
Measure the counter height and depth as well as the window opening. Show faucets, shelves, work surfaces and the area where panels will park so the open window remains useful during service.
Plan the opening
Your project
Request a quote
TS.X0 All Aluminum Thermally Broken Slim. Measure the counter height and depth as well as the window opening. Show faucets, shelves, work surfaces and the area where panels will park so the open window remains useful during service.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
